Finished products
Pins & Hammers
High precision
Preciball supplies a wide range of solutions for many types of industries, like the automobile, metal-mechanical, industrial equipment, metering, food (cacao/chocolate), closures (valves), dispersion, chemical, and oil & gas, among others.
We can offer the appropriate material, manufacturing process, and precision options to accommodate the specific requirements of the application.
- Pins & hammers
- Industrial Pins
- Needle rollers Cylinders & needle Rollers
- Industrial Bushings
- Industrial Rollers
- Axles
Large selection of steel compositions
| AISI 52100 | AISI 420 |
| AISI 1085 | AISI 430 |
| ASTM 5120 | AISI 440 |
| 25CRMO4 | AISI 304 |
| 30CRMO4 | AISI 316 |
| 35CRMO4 | Tungsten Carbide |
| Brass |

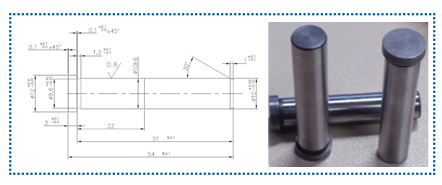

Pins & Hammers
Preciball provides high performance Pins and hammers for grinding equipment and food industry mills. We offer the possibility to adapt our production to your specific design needs. Our well proven knowledge on the quality and performance needs of these types of parts is an important added value to our products.
For example: some of our chrome steel pins and hammers have a special Carbon Nitrating surface treatment that hardens the steel surface up to 66 Hrc, while maintaining the part’s structural flexibility and torsion resistance, for superb performance and durability. The right material choice translates into better productivity time and lower maintenance costs.
The different steel compositions, material origins, and specific treatments are chosen to ensure the highest possible standard of quality and corporate responsibility. Our materials are ROHS compliant and we do everything in our power to prevent the content of harmful pollutants that can easily be found in some machined parts available on the market.
Cylindrical & Needle Rollers
Whether for bearings or other mechanical applications we can offer a large range of high quality chrome steel cylindrical and needle rollers.
These rollers are normally manufactured from Chrome Steel with a hardness value between 58 ~ 65 HRC, and a surface roughness of Ra ≤ 0.2. However, we can also supply rollers manufactured in various types of Stainless Steel, and in different designs and sizes. If you need a particular “out of standard” design just send us your technical drawings representing the required size and tolerance, and let us know the quantities you need.
Our standards are:
Materials
- AISI 52100
- AISI 420 C
- AISI 430
- AISI 304
- AISI 316
Types
- Cylindrical rollers
- Pointed-end needles
- Round-end needles
- Flat –end needles

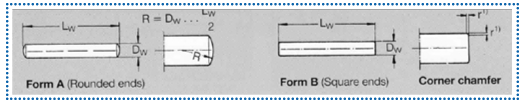

End types
- Rounded
- Cylindrical
- Diagonal
Designs & mesures
| CYLINDRICAL ROLLERS | NEEDLE ROLLERS | ||||
| Size mm | Weight per 1000 pcs / kg | Size mm | Weight per 1000 pcs / kg | Size mm | Weight per 1000 pcs / kg |
| 3 X 5 | 0.268 | 1.5 X 5.8 | 0.08 | 3.5 X 13.8 | 1.05 |
| 4 X 6 | 0.581 | 1.5 X 6.8 | 0.094 | 3.5 X 15.8 | 1.19 |
| 4 X 8 | 0.775 | 1.5 X 7.8 | 0.106 | 3.5 X 17.8 | 1.35 |
| 5 X 5 | 0.7551 | 1.5 X 9.8 | 0.136 | 3.5 X 19.8 | 1.51 |
| 5 X 8 | 1.212 | 1.5 X 11.8 | 0.164 | 3.5 X 21.8 | 1.67 |
| 5.5 X 8 | 1.468 | 1.5 X 13.8 | 0.191 | 3.5 X 23.8 | 1.85 |
| 6 X 6 | 1.308 | 2 X 6.8 | 0.16 | 3.5 X 25.8 | 1.96 |
| 6 X 8 | 1.714 | 2 X 7.8 | 0.19 | 3.5 X 27.8 | 2.1 |
| 7 X 7 | 2.0757 | 2 X 9.8 | 0.24 | 3.5 X 29.8 | 2.25 |
| 7 X 10 | 2.972 | 2 X 11.8 | 0.29 | 3.5 X 34.8 | 2.65 |
| 8 X 8 | 3.1038 | 2 X 13.8 | 0.34 | 4 X 15.8 | 1.55 |
| 8 X 12 | 4.689 | 2 X 15.8 | 0.39 | 4 X 17.8 | 1.75 |
| 9 X 9 | 4.416 | 2 X 17.8 | 0.44 | 4 X 19.8 | 1.95 |
| 10 X 10 | 6.071 | 2 X 19.8 | 0.49 | 4 X 21.8 | 2.14 |
| 11 X 11 | 8.0778 | 2 X 21.8 | 0.54 | 4 X 23.8 | 2.33 |
| 11 X 15 | 11.0298 | 2.5 X 7.8 | 0.3 | 4 X 25.8 | 2.53 |
| 12 X 12 | 10.495 | 2.5 X 9.8 | 0.38 | 4 X 27.8 | 2.62 |
| 12 X 18 | 15.7653 | 2.5 X 11.8 | 0.45 | 4 X 29.8 | 2.95 |
| 14 X 14 | 16.6681 | 2.5 X 13.8 | 0.53 | 4 X 34.8 | 3.4 |
| 14 X 20 | 23.8423 | 2.5 X 15.8 | 0.61 | 4 X 39.8 | 3.9 |
| 15 X 15 | 20.512 | 2.5 X 17.8 | 0.69 | 5 X 19.8 | 3.03 |
| 16 X 16 | 25.039 | 2.5 X 19.8 | 0.76 | 5 X 21.8 | 3.36 |
| 17 X 17 | 29.8939 | 2.5 X 21.8 | 0.84 | 5 X 23.8 | 3.58 |
| 18 X 18 | 35.4589 | 2.5 X 23.8 | 0.92 | 5 X 25.8 | 3.98 |
| 19 X 19 | 41.7102 | 3 X 9.8 | 0.54 | 5 X 27.8 | 4.18 |
| 20 X 20 | 48.6636 | 3 X 11.8 | 0.65 | 5 X 29.8 | 4.6 |
| 20 X 30 | 72.9953 | 3 X 13.8 | 0.76 | 5 X 34.8 | 5.4 |
| 21 X 30 | 81.062 | 3 X 15.8 | 0.87 | 5 X 39.8 | 6.15 |
| 22 X 22 | 64.7693 | 3 X 17.8 | 0.99 | 5 X 49.8 | 7.5 |
| 24 X 36 | 127.237 | 3 X 19.8 | 1.1 | ||
| 25 X 25 | 95.1003 | 3 X 21.8 | 1.21 | ||
| 25 X 36 | 136.9446 | 3 X 23.8 | 1.32 | ||
| 26 X 26 | 106.997 | 3 X 25.8 | 1.43 | ||
| 28 X 28 | 134.325 | 3 X 27.8 | 1.54 | ||
| 30 X 30 | 164.355 | 3 X 29.8 | 1.61 | ||
| 30 X 48 | 262.9665 | 3.5 X 11.8 | 0.91 | ||

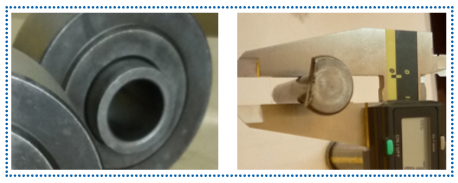

Industrial Rollers, Pins and Bushings
We can design and supply steel rollers, pins and bushing assemblies for many different types of equipment and industrial applications. Depending on the specific technical requirements, Preciball can propose many material compositions:
| ASTM5120 | AISI 304 |
| AISI 52100 | AISI 316 |
| 25CRMO4 | AISI 420 |
| 30CRMO4 | AISI 430 |
| 35CRMO4 | AISI 440 |
| AISI 1085 |
These materials can also be enhanced with different treatments to achieve optimum performance and operational value.
Standard treatments:
| Trivalent hard Chrome plating | PQP |
| Nickel plating | Carbon nitrating |
| PVD | Case hardening |
Having a world-wide network of specialized subcontractors, and a large volume of consolidated projects, we can offer you a viable high quality solution.

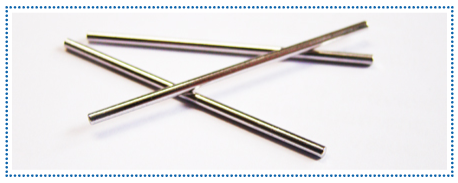

Axles
Hardened and demagnetized Stainless steel axles are a high precision specialty product. We can adhere to very precise design specifications and offer different surface finishes (polished, unpolished, chamfered,…) in stainless steel AISI 304, and AISI 316.
